P860C Microstepping Driver 2.8A-8.4A

P860C Microstepping Driver 2.8A-8.4A

£156.85

4 in stock

SKU: P860C Category:

Product Description

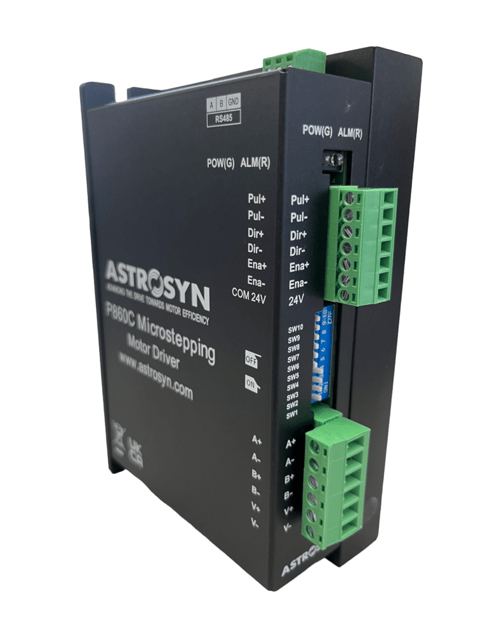

Model P860C Microstepping Driver 2.8A -8.4A Amp is a full digital high performance DSP Driver .

The design features an advanced bipolar constant-current chopper circuit with current control technology.  The driver is suited to stepper motor control applications requiring low noise, low vibration, high speed and high precision.

  • High Performance Low cost
  • Supply Voltage 24V to 110 V dc or 18V to 80A ac
  • Inaudible chopping frequency
  • Drive Current  from 2.8 A to 8.4 A / phase (Peak), (Working current 2.0 to 6.0 A)
  • TTL Compatible and Optically isolated input signals
  • Automatic idle current reduction
  • Mixed-decay current control for reduced motor heating
  • 16 Selectable step resolutions in decimal and binary (Max 51200ppr)
  • Suitable for 4, 6 or 8 lead wire motors
  • Step, Direction and Enable inputs
  • Over temperature and over voltage protected
  • Short circuit protected.

Additional Specifications:

Drive Current:               Adjustable from 2.8A to 8.4A

Supply Voltage:            Input voltage from +24V to 110Vdc

Step Control:                Full Step or Microstepping

Control Inputs:             Connections for pulse, direction and enable signals

Pulse Signal:               Speed control to maximum frequency 200 khz

Direction Signal:          Clockwise or counter-clockwise rotation

Enable Signal:             Driver Enable or Disable

Logic Signals:              Current from 6 mA to 30mA

Material:                      Black Coated Aluminium with Intergral Heatsink

Mounting:                    Free standing or Via Mounting holes

Dimensions:               150 x 53 x 97.5mm

Mass;                         600 g



Additional information

Weight 0.600 kg
Dimensions 150 × 97.5 × 53 cm

Data Sheets

Astrosyn P860C Spec (Standard)V1 Issue 1 01.11.2023

P860C Manual V1 Issue 1 01.11.2023



Guides

Guide to Stepper Motor Drive Selection

Q: How can I work out which stepper motor drive I need?
A: If you are new to these products we suggest that you start by reading our technical guides to stepper motors and stepper motor drives. These may be downloaded through the Technical section of this website. With this overview you will then need to review the motor and drive product ranges, e.g., unipolar or bipolar drive mode, drive voltage and current, size and style of drive etc.

Q: Are your products suitable for worldwide use?
A: In general, yes, as they are DC powered and designed to International Standards.

Q: Are the products compliant with EU safety standards and directives?
A: Yes, we apply all relevant European Directives to our designs, and where appropriate, carry out EMC testing in independent laboratories.

Q: Are the products compliant with the RoHS Directive?
A: Our materials and manufacturing processes were converted to RoHS-compliance several years ago. All of our current products are fully RoHS-compliant.
