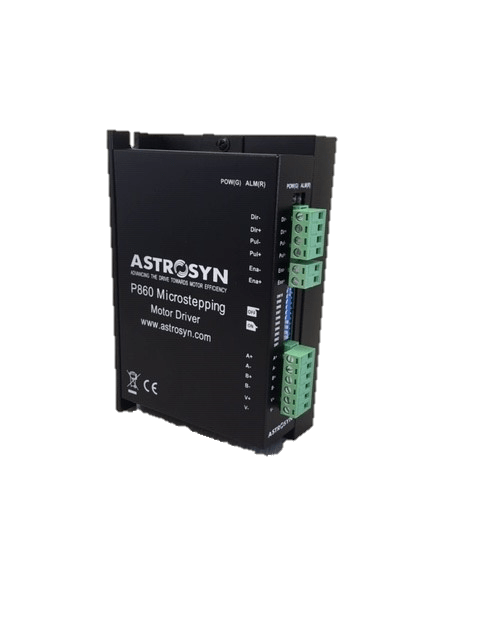

Astrosyn P860 Microstepping driver

P860 Microstepping Driver 2.8A-8.5A

£142.55

Out of stock

SKU: P860 Category: Tag:

Product Description


Model P860 Microstepping Driver 2.8A -8.5A Amp is a full digital high performance DSP Driver suitable for 2 phase and 4 phase Hybrid Stepping Motors requiring a drive current of up to 4.0 Amp/phase.

The design features an advanced bipolar constant-current chopper circuit with current control technology.  The driver is suited to stepper motor control applications requiring low noise, low vibration, high speed and high precision.

  • High Performance Low cost
  • Supply Voltage 24V to 110 Vdc, current to 8.5 Amp
  • Inaudible chopping frequency
  • Drive Current  from 2.8 A to 8.5 A / phase
  • TTL Compatible and Optically isolated input signals
  • Automatic idle current reduction
  • Mixed-decay current control for reduced motor heating
  • 16 Selectable step resolutions in decimal and binary
  • Microstepping to 51200 steps/revolution
  • Suitable for 4, 6 or 8 lead wire motors
  • Step, Direction and Enable inputs
  • Over temperature and over voltage protected
  • Short circuit protected.

Additional Specifications:

Drive Current:               Adjustable from 2.8A to 8.5A

Supply Voltage:            Input voltage from +24V to 110Vdc

Step Control:                Full Step or Microstepping

Control Inputs:             Connections for pulse, direction and enable signals

Pulse Signal:               Speed control to maximum frequency 200 khz

Direction Signal:          Clockwise or counter-clockwise rotation

Enable Signal:             Driver Enable or Disable

Logic Signals:              Current from 6 mA to 30mA

Material:                      Black Coated Aluminium with Intergral Heatsink

Mounting:                    Free standing or Via Mounting holes

Dimensions:               97.5 x 150 x 53mm

Mass;                         600 g
